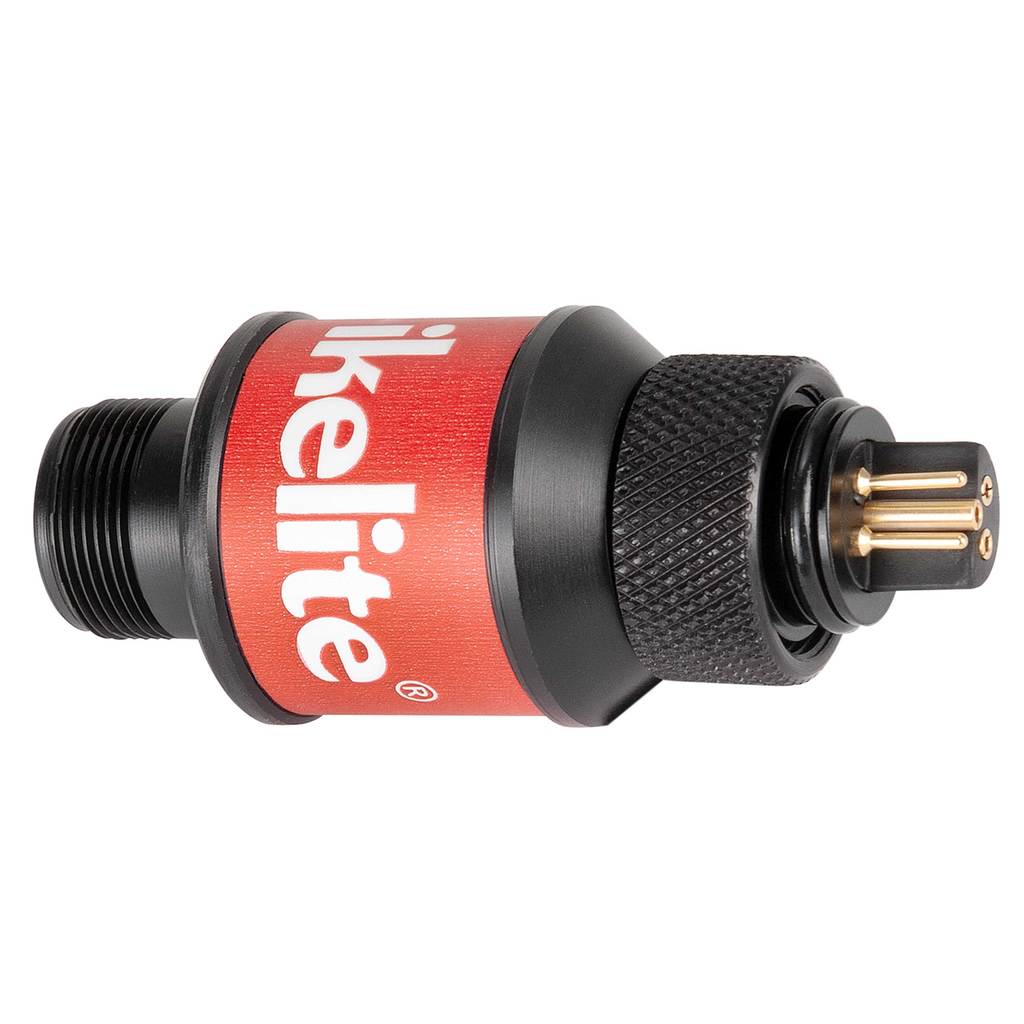

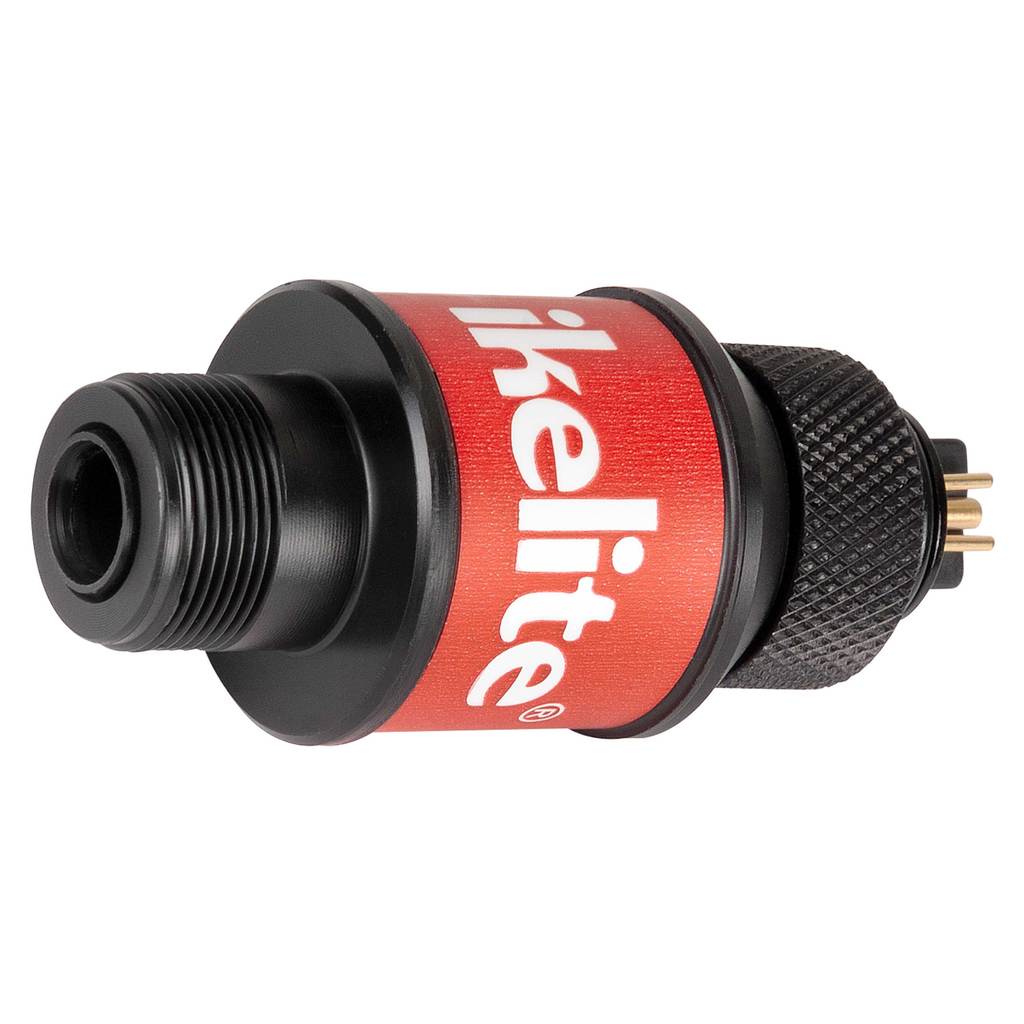

Ikelite RC1 Olympus & Panasonic TTL Receiver for DS Strobes

Enjoy true Olympus and Panasonic LUMIX TTL strobe exposure via fibre optic connection with your compatible Ikelite DS strobe. The RC1 TTL Receiver works seamlessly with cameras in RC flash mode, enabling accurate TTL exposure by communicating directly with the camera—far more precise than traditional “slave TTL” systems.

A separate RC1 TTL Receiver and compatible fibre optic cord are required for each strobe. Using two strobes requires two receivers. This product connects directly to an Ikelite DS strobe and is not designed for use on housings or non-Ikelite strobes.

For AOI housings, please refer to the RC1 Olympus TTL Receiver for AOI LED Flash Trigger and DS Strobes instead.

Product Details

• Depth Rating: 100 metres
• Weight: 85g (3 oz)

RC Mode TTL Strobe Exposure

Compatible with Olympus and Panasonic LUMIX RC flash mode, this receiver provides automatic TTL exposure. Set your DS strobe to “TTL” and the camera to “RC” mode for accurate performance. Adjust flash intensity using your camera’s flash exposure compensation controls.

Manual Strobe Exposure

Manual strobe output can be controlled via your strobe's built-in power settings (varies by model). Set the camera’s flash mode to manual and use the lowest flash output necessary to trigger the strobe—conserving your camera’s battery life.

Camera & Housing Compatibility

Ikelite Housing Models:

• Olympus OM-D E-M10 Mark III – Ikelite #6950.13
• Olympus Stylus 1s – Ikelite #6139.51
• Olympus Tough TG-3 / TG-4 – Ikelite #6233.03 / 04 / 05
• Olympus Tough TG-5 / TG-6 – Ikelite #6233.06 / 07
• OM System Tough TG-7 – Ikelite #6233.06 / 07

Non-Ikelite Housing Models:

• Olympus OM-D & Tough series in Olympus, Nauticam, Isotta, or Recsea housings (with FL-LM3 flash as applicable)
• Panasonic GH3 / GH4 / GH5 / GH5s / GX8 / LX100 II in supported housings with DMW-FL70 or VEK0V37Z1-A flashes
• Note: RC1 Receivers built on or after 9 Nov 2018 marked 1.1 are compatible with LX100 II

Strobe & Fibre Optic Cord Compatibility

Compatible Fibre Optic Cords:

• Ikelite Coiled Cord #4501
• INON Optical D Cable “Non-wireless type” L-Connector
• SEA&SEA Cable #50107 / Cable II #50128
• Olympus PTCB-E02
• Nauticam #26211 (to INON) / #26212 (to SEA&SEA)

Note: Ikelite fibre optic ports use the same standard as SEA&SEA and Olympus ports. Please confirm housing compatibility with your manufacturer.

Compatible Ikelite Strobes:

• DS50 (serial #70000 and up)
• DS51
• DS125 (serial #5000 and up)
• DS160, DS161, DS162
• DS200 (serial #7163 and up)
• DS230, DS232

Note: Not compatible with non-digital Ikelite strobes or strobes by SEA&SEA, INON, or other brands.

In the Box

• TTL Receiver
• Connector Protector
• 1cc Tube of Silicone Lubricant

Important Notes

• This product must be used with Ikelite DS strobes and is not for use on housing bulkheads.
• Each strobe requires its own RC1 TTL Receiver and compatible fibre optic cord.
• For AOI housings with LED triggers, use the RC1 Receiver #4413 instead.
• Ensure flash and camera firmware are up to date for optimal TTL performance.
